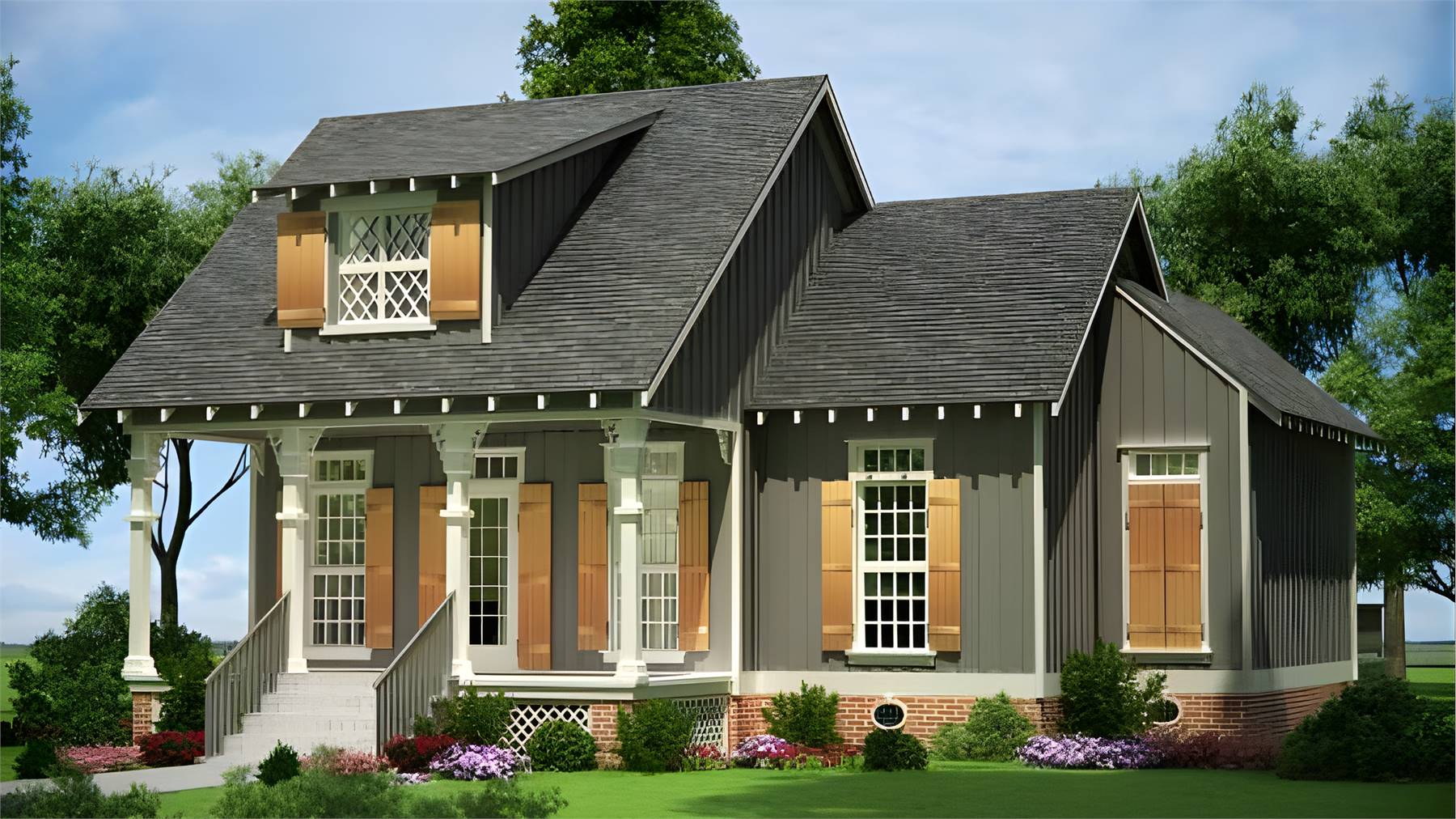

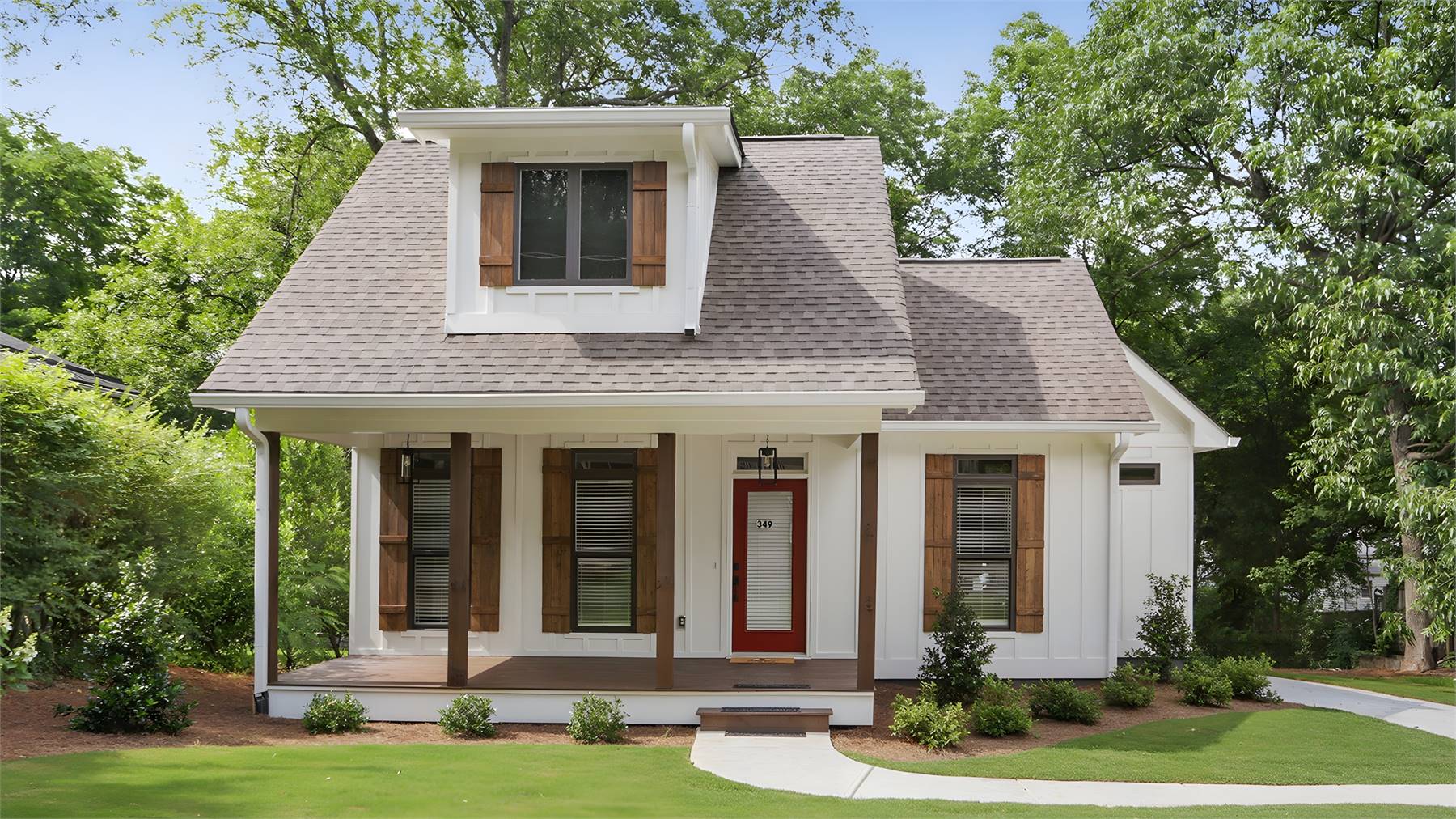

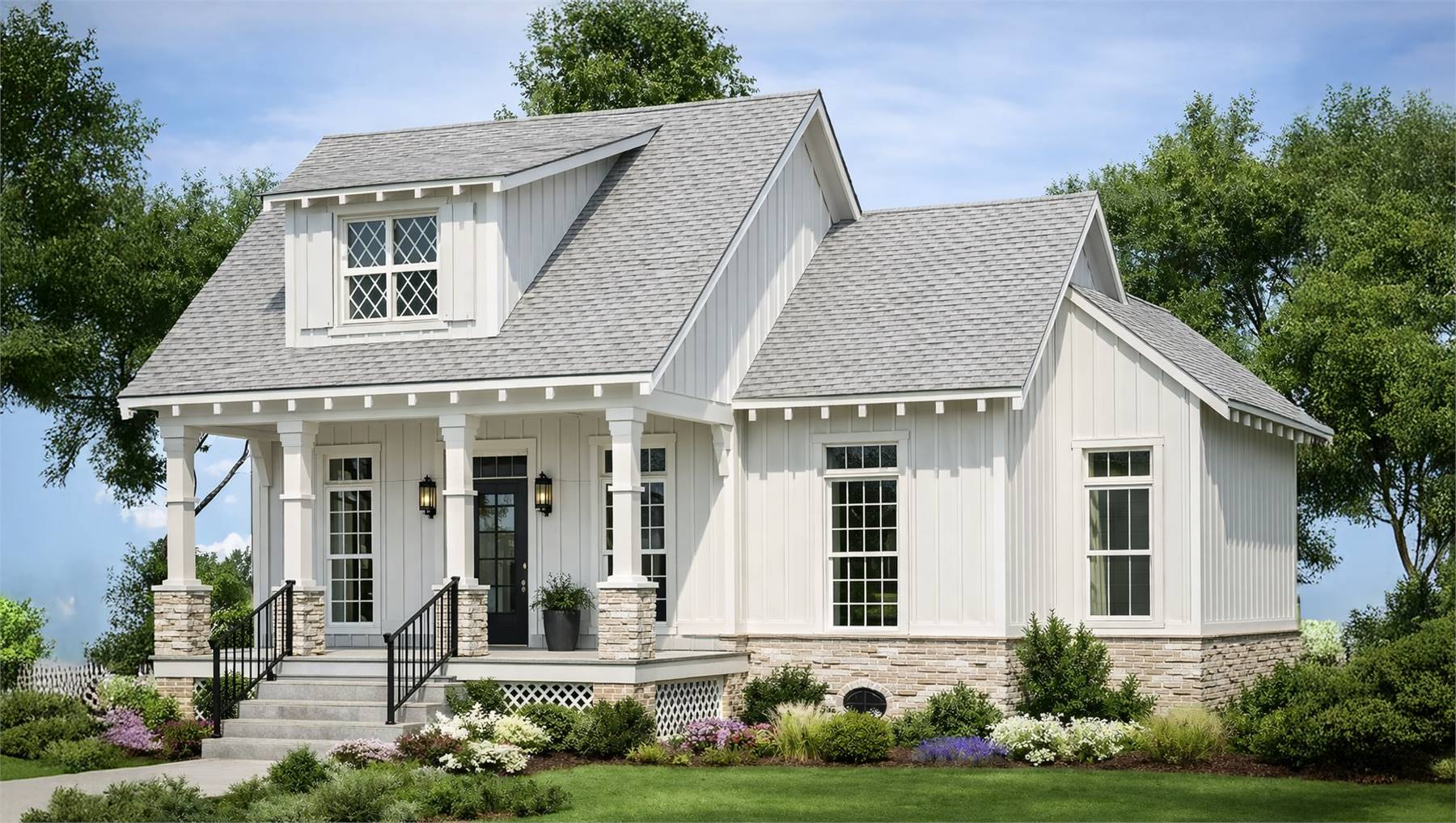

You have selected The Catilina 1013: 1013

© copyright by designer
View Plan Details
Stories: 1
Total Square Footage: 1,086
First Floor: 1,086
Bedrooms: 3
Full Baths: 2, Half Baths: 1
Width: 36 ft.
Depth: 46 ft.
Foundation:
Crawl Space Foundation, Optional Concrete Slab Foundation
For questions or to order by phone, call 1-800-662-8262

Available Plan Packages

Plan Packages: Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, structural information, cross sections, roof plans, cabinet layouts and elevations, as well as general specifications. They contain virtually all of the information required to construct your home.

$700.00   PDF BID SET
This electronic version of the construction blueprints is the ideal choice for pricing the home and obtaining reliable bids. It will be red-stamped "NOT FOR CONSTRUCTION" but can be upgraded to a full construction PDF or blueprints within 60 days. It can be e-mailed the same day you purchase. An online license will be completed during the checkout process.

$900.00   PDF Construction Set - 1 Build
YOUR BEST VALUE FOR CONSTRUCTION PURPOSES. Provides an electronic version of the construction blueprints for the construction of a single home.. You can print 8 1/2 x 11 copies on your own computer or go to a copy shop and print as many copies as you need, whether full size 24 x 36 copies - or any size - for field use. The PDF file is also readily modified if you are making changes. The PDF File can be e-mailed the same day. Completion of an online license indicating location of the house will be done during checkout.

$1,005.00   4 sets

$1,050.00   5 sets

$1,110.00   8 sets

$1,600.00   Cad Files
Electronic Cad Files are available on many plans - Call 866-214-2242 for availability and format. Purchaser is required to sign a license prior to delivery of the Cad files.
Plan Foundations

$0.00Crawl Space Foundation
This plan is designed on a Crawl Space Foundation - an above ground foundation consisting of an exterior masonry curtain wall, interior beam supports and wood floor joist. This type of foundation raises the floor level of the house several feet above the existing grade. The advantages of a crawl space foundation are it is more energy efficient and it does not require a level building site.

$150.00Optional Concrete Slab Foundation
An alternate Monolithic concrete slab foundation is available for this plan. This type foundation requires a level building pad. The foundation consist of a 4" thick, reinforced, poured in place concrete floor with interior footings under support walls.
Plan Options

$125.00ADD PDF TO PRINT ORDER
For those that want both prints and a PDF electronic file, order the prints and choose the option to ADD A PDF ELECTRONIC FILE TO A PRINT ORDER. When choosing this option, the customer must order prints. This is a great option because prints can be used to distribute to your contractor for use on the job site. The PDF electronic files can be sent to sub-contractors, permit departments and your lender.

$90.00Mirror Reverse Set
The image is reversed 180 degrees in a mirror reverse plan; however, the lettering and dimensions will also be reversed. If you select the mirror reverse option, you will receive 2 sets of your total order in mirror reverse. The mirror reverse sets will assist your contractor to lay out the foundation and framing in reverse. The remaining sets of your order will not be mirror reversed. Your lender and permit department will not accept mirror reverse plans.

Complete order online today and pay with your credit card using our secure checkout process.

Print your order form and send your payment directly to Breland & Farmer Home Designs. Allow popups in order to print this form.

Print Out Order Form

To order by phone, call our customer service team at the number below.

1-800-662-8262
