Details |  Save | See Reverse | 3D | Modify | Back to Search

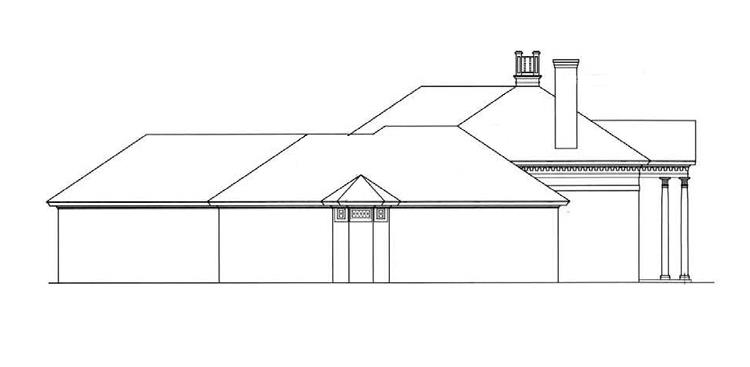

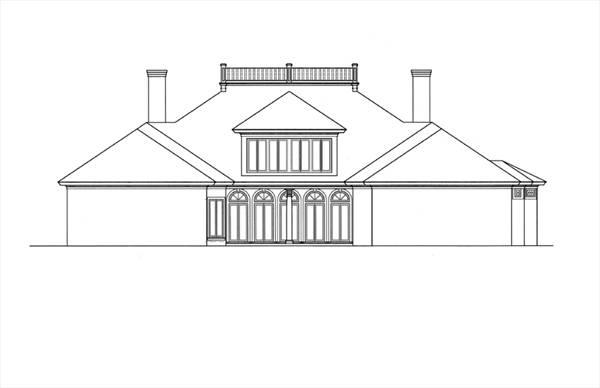

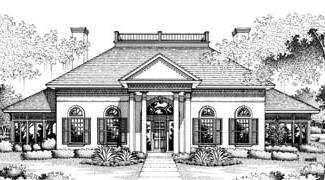

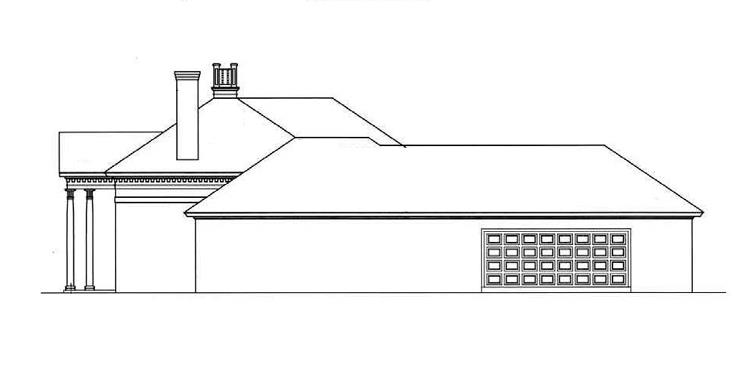

Front Rendering Right Side Elevation Rear Elevation Left side elevation Front Exterior First Floor Plan Second Floor Plan
See all 7 photos and rear view
Photographs may reflect modified homes
© copyright by designer

Plan: 3401 Whittington Hall-3401

Plan Specification
Total Square Footage: 3,475
Main Level: 2,655
Second Level: 820
Bedrooms: 4
Baths: 4 Half: 0
Garages: 2
Width/Depth: 74 ft / 78 ft
Foundation: Concrete Slab Foundation
View typical construction drawing >
© copyright by designer
First Floor Plan:
First Floor Plan
© copyright by designer
Second Floor Plan:
Second Floor Plan
Similar plans: 3200, 2608, 3304
Add to Favorites
Purchase Plans
House Plan Pricing
$1,025.00
$1,250.00
$1,305.00
$1,350.00
$1,460.00
$2,300.00
Foundation Options
$0.00
Additional Plan Options
$125.00
$90.00
$15.00
$90.00
Plan Details
General House Information
1.5
Number of Stories:
74' 0"
Width:
78' 0"
Depth:
Single
Dwelling Number:
None
Bonus Access:
Exterior Style
Luxury
Old House Classics
European
Mediterranean
Southern
Traditional
Facade
Stucco
Number of Rooms
4
Bedrooms:
4
Full Baths:
Finished Square Footage
2,655 Sq. Ft.
Main Level:
820 Sq. Ft.
Upper Level:
3,475 Sq. Ft.
Total:
Unfinished Square Footage
967 Sq. Ft.
Garage:
GARAGE
2
Garage Size:
Foundation
Concrete Slab Foundation
House And Ceiling Heights
9
First Floor Ceiling:
8
Second Floor Ceiling:
32' 0"
Maximum House Height:
Framing Information
Stick
Roof Framing:
2x6
Exterior Wall Framing:
Roof Pitch
8/12
Primary:
Roof Load
20
Live:
10
Dead:
Insulation (R)
19
Exterior Wall:
0
Interior Wall:
38
Ceiling:
19
Floor:
Number of Rooms
4
Bedrooms:
4
Full Baths:
Key Features
• Attached
• Front Porch
• Slab
• Suited for corner lot
